golf-shot-viz options catalog

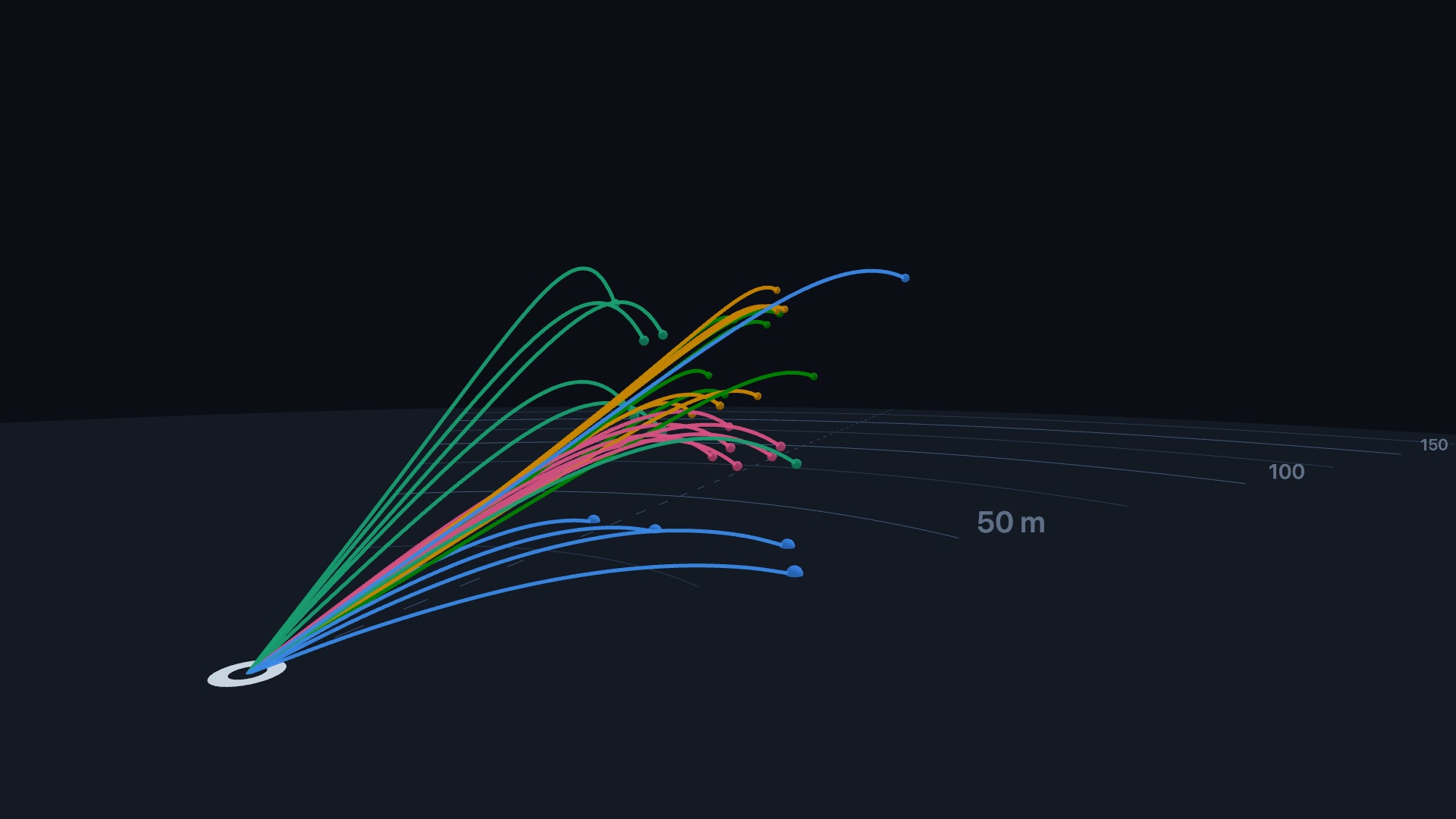

mode

studio draws every full trajectory for analysis. showcase is the replay view; trajectories reveal over time. Shown mid volley replay.

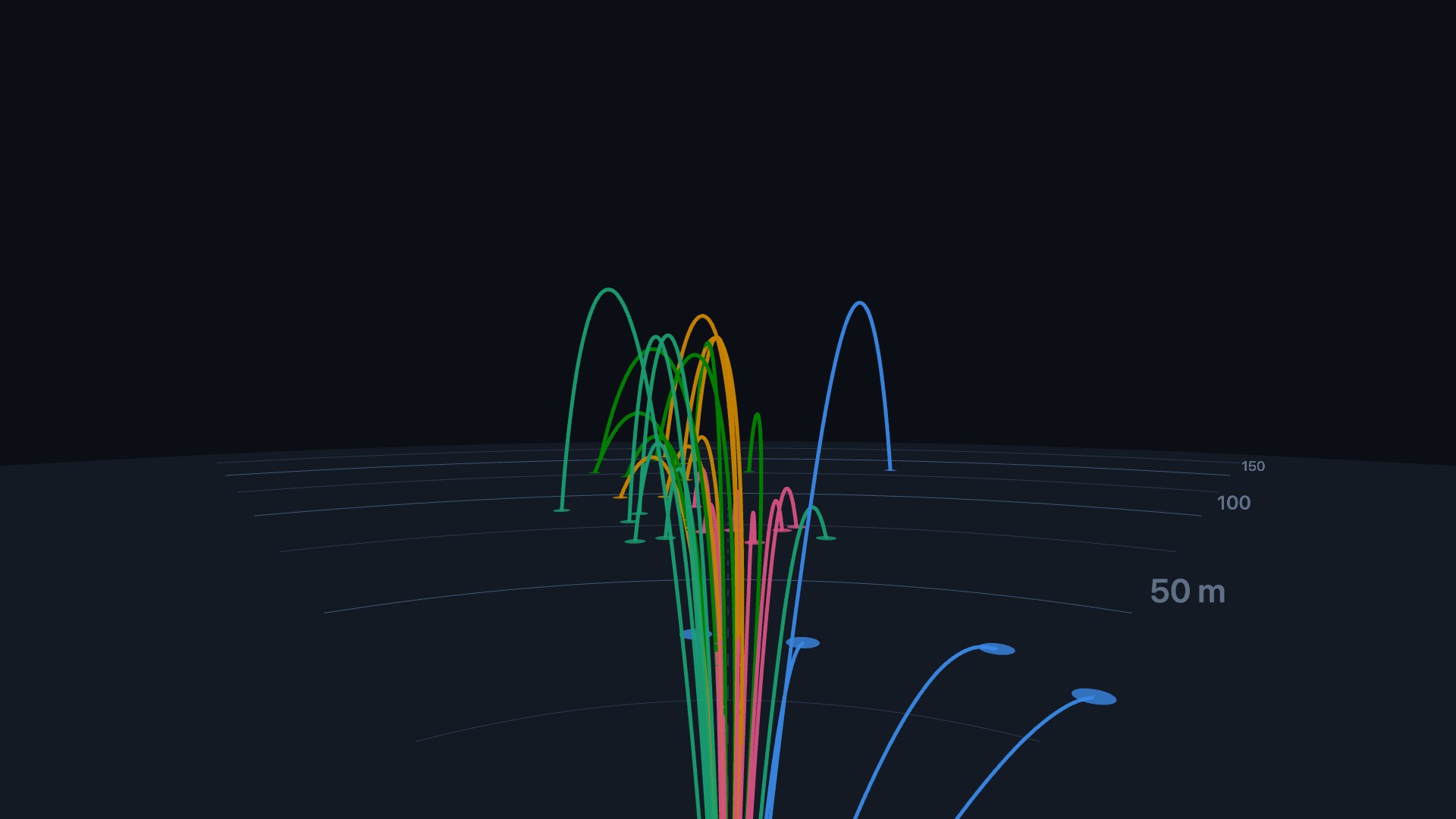

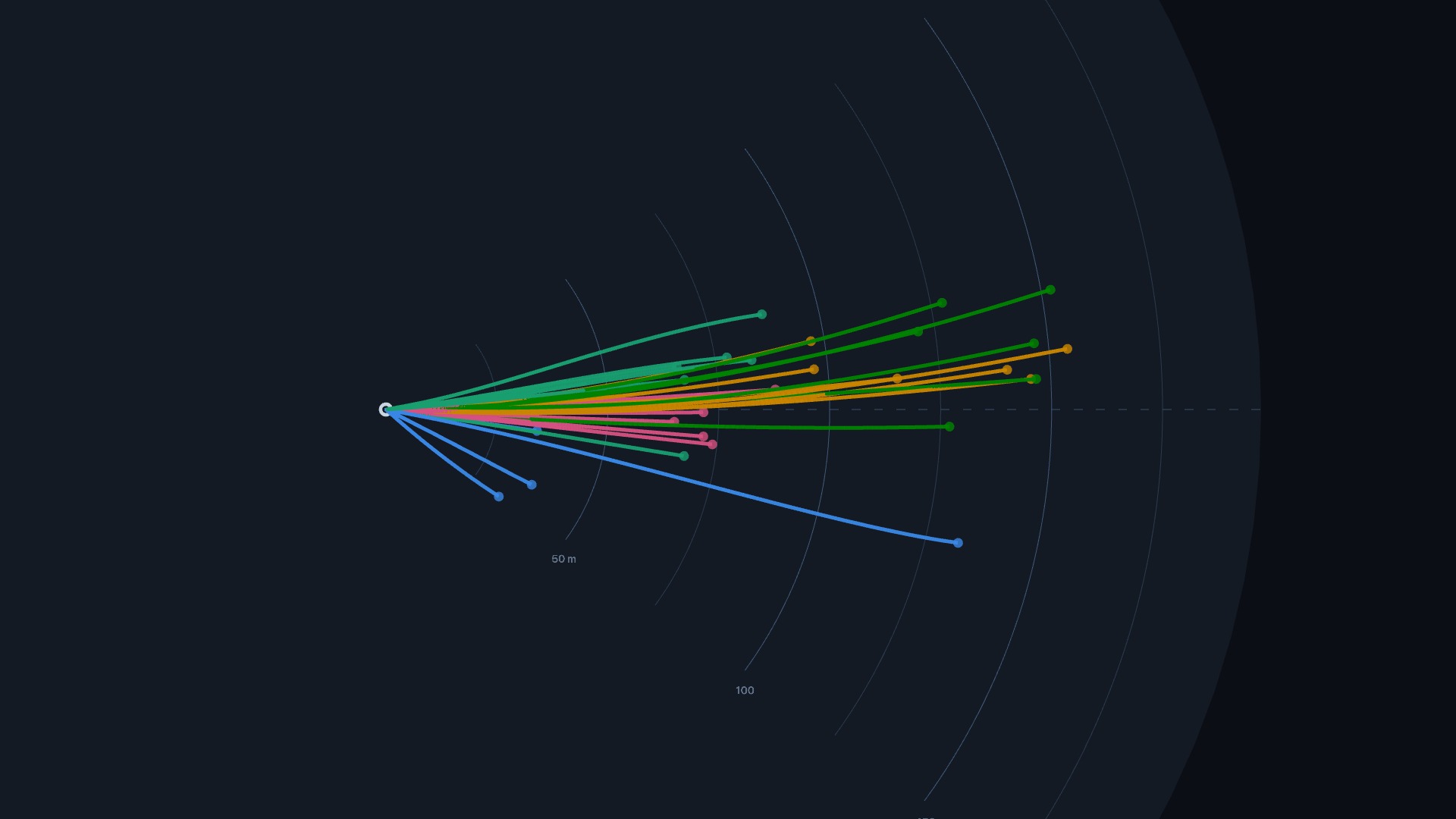

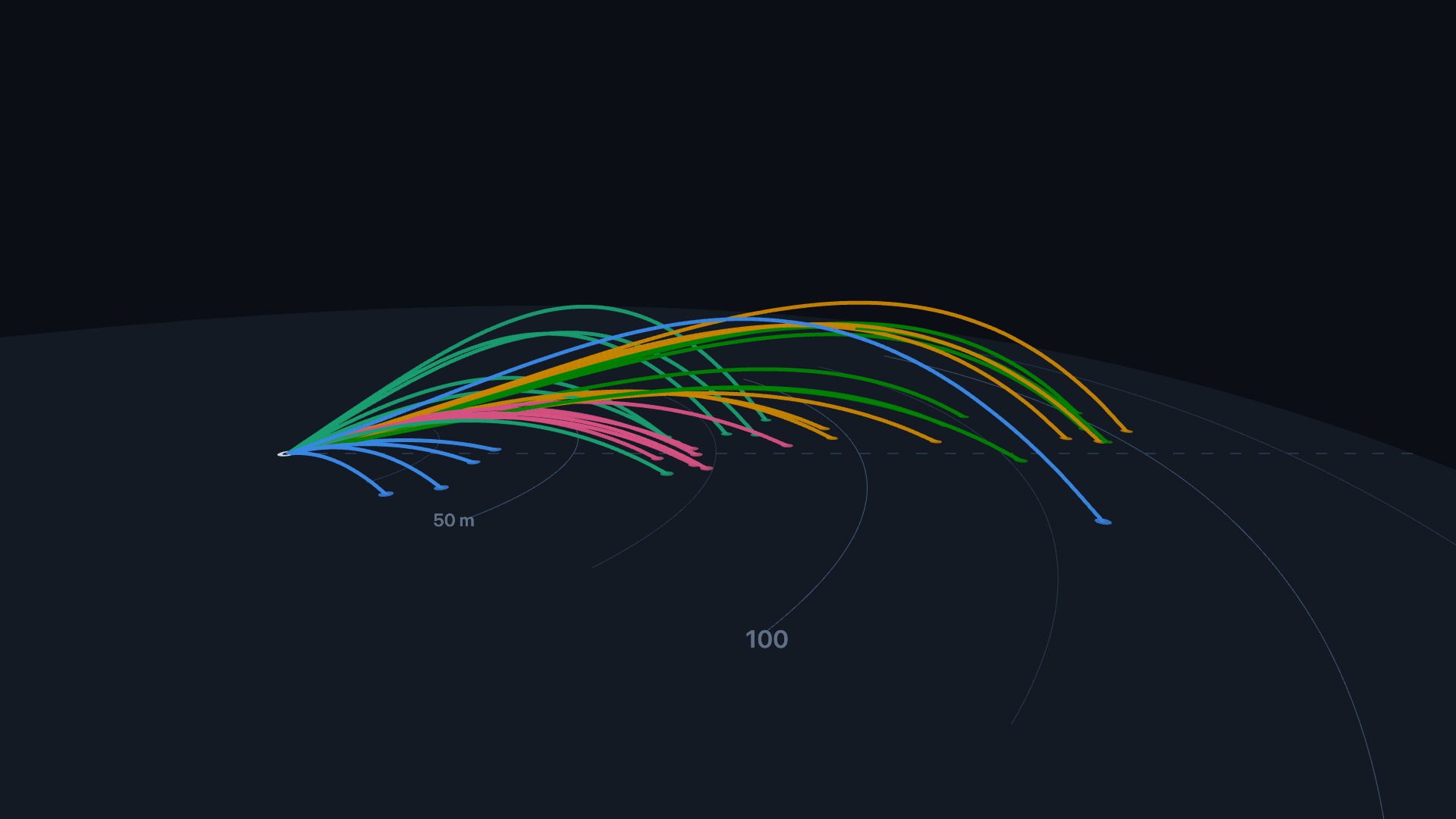

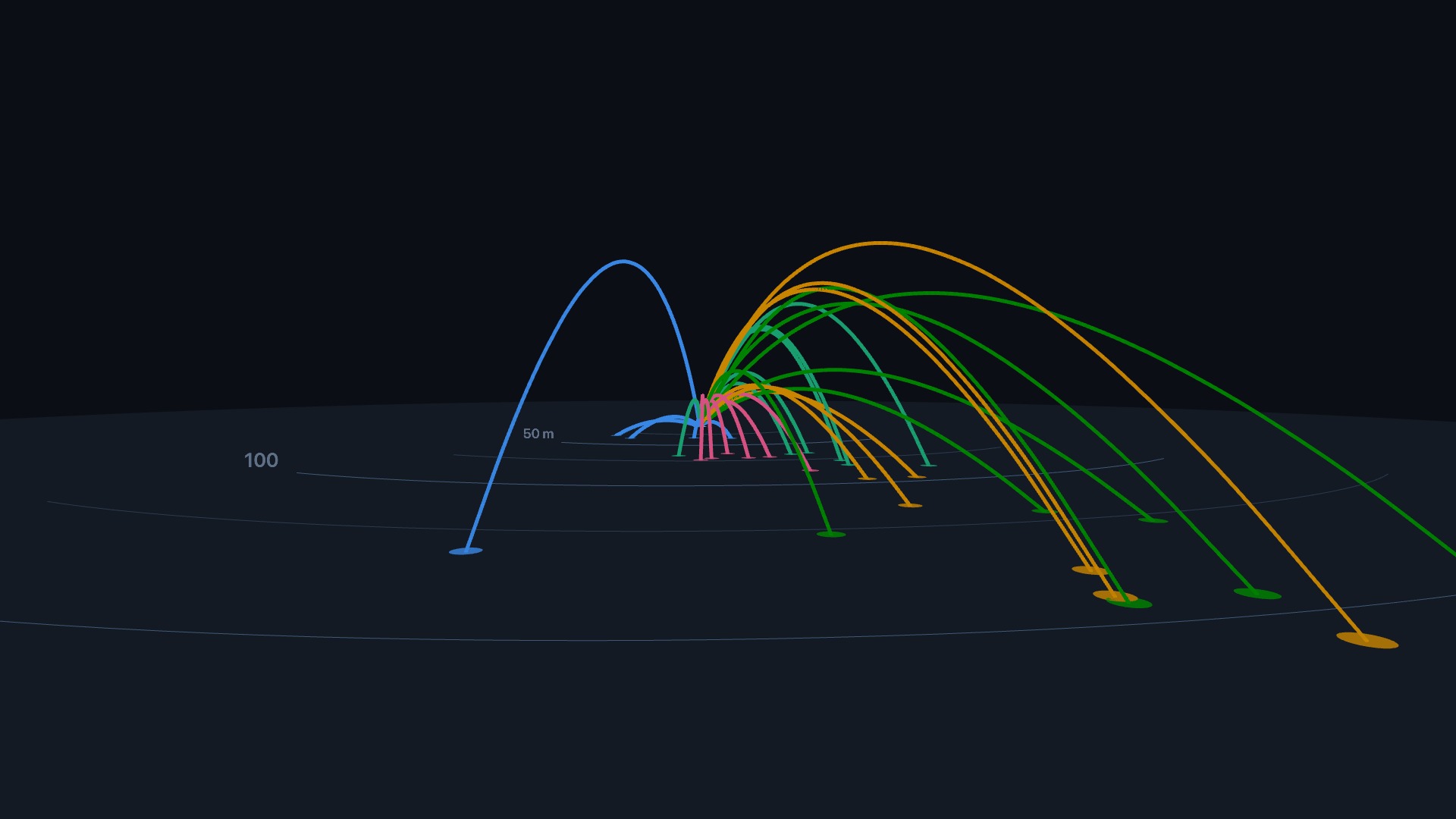

cameraPreset

Framing presets sized to the data extent. Also settable at runtime with setCameraPreset, which flies the camera over.

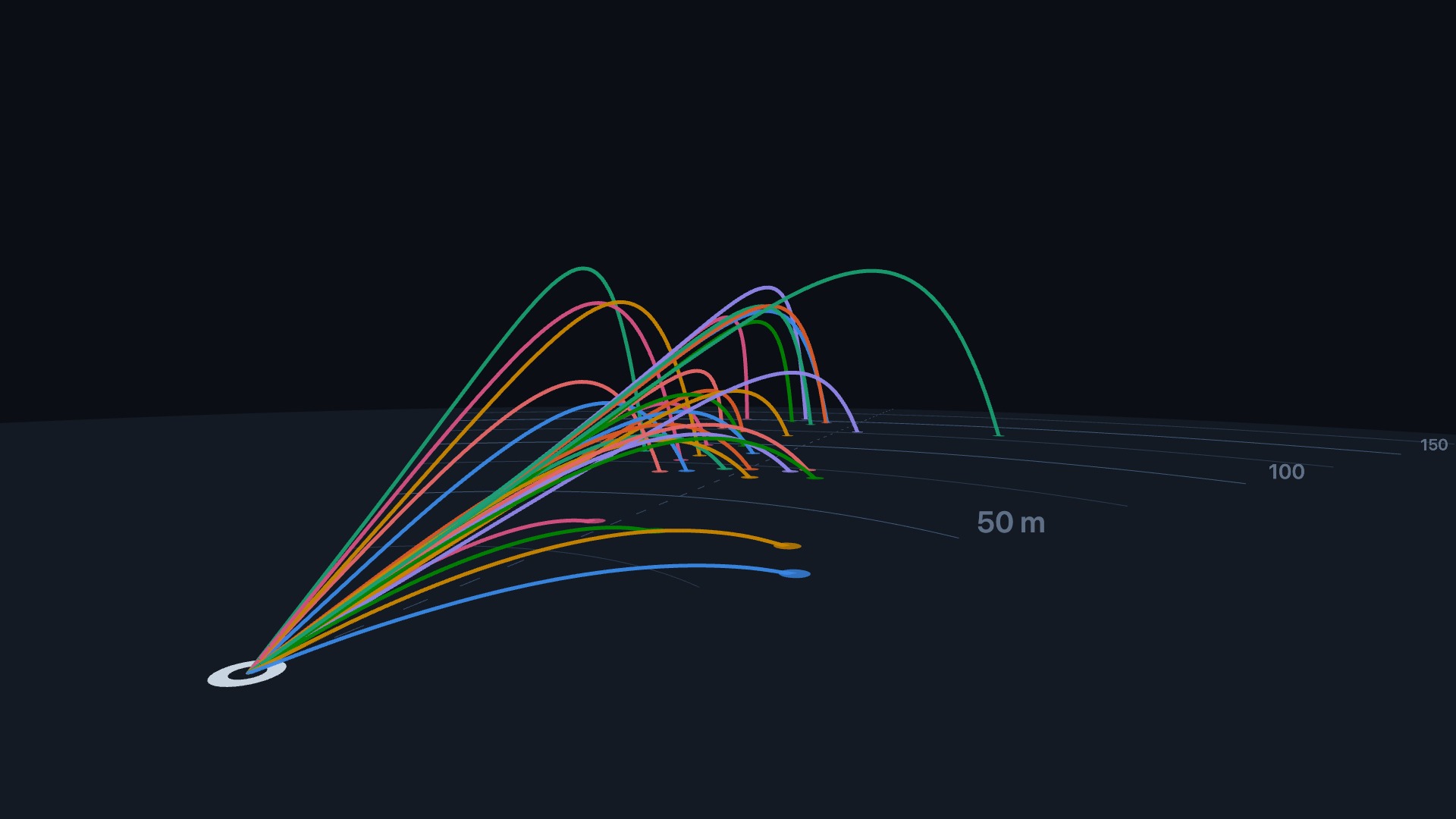

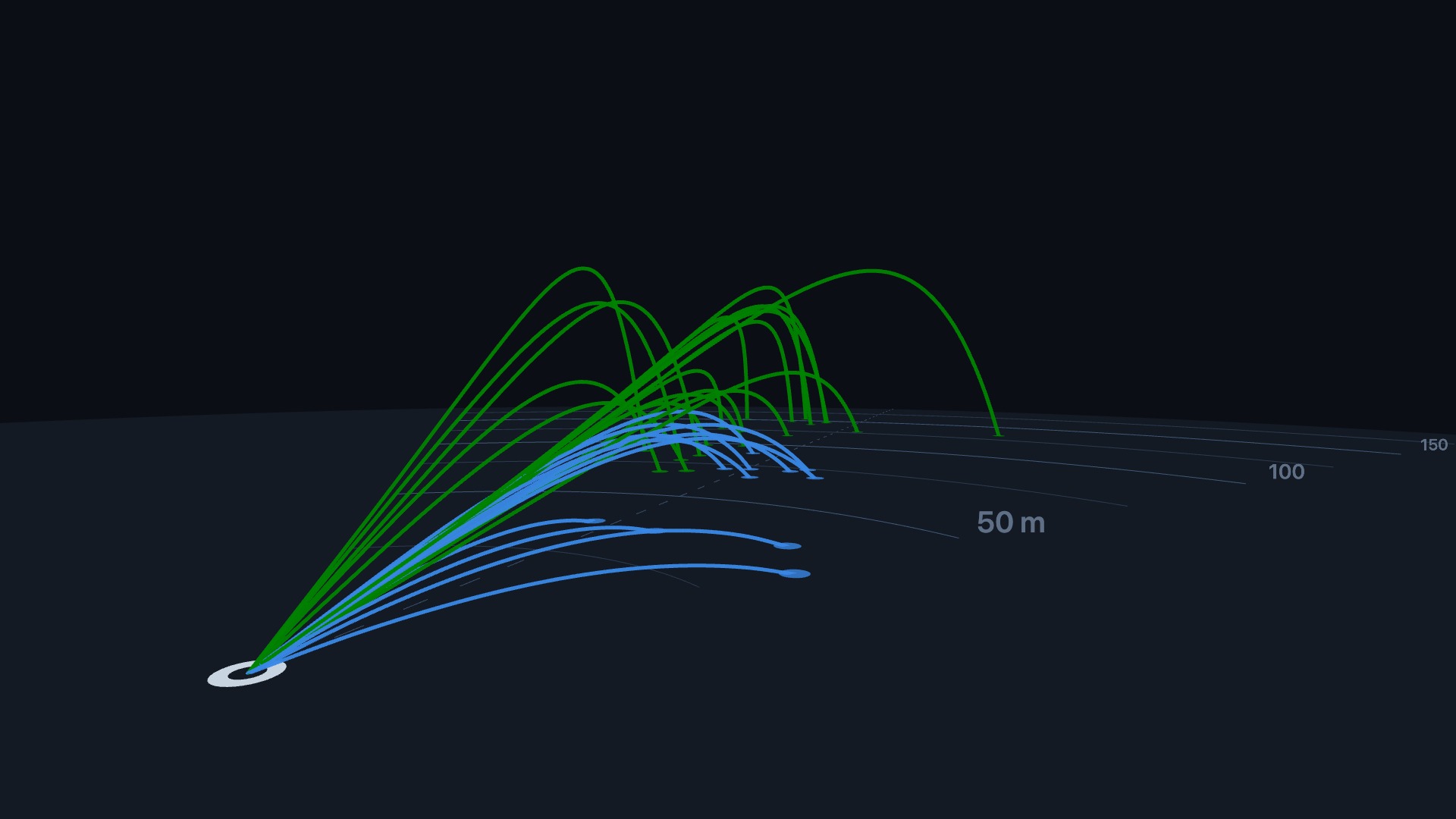

colorBy

How tracer colors are assigned when shots carry no explicit color. club and session take fixed palette slots in order of first appearance. index cycles the palette per shot.

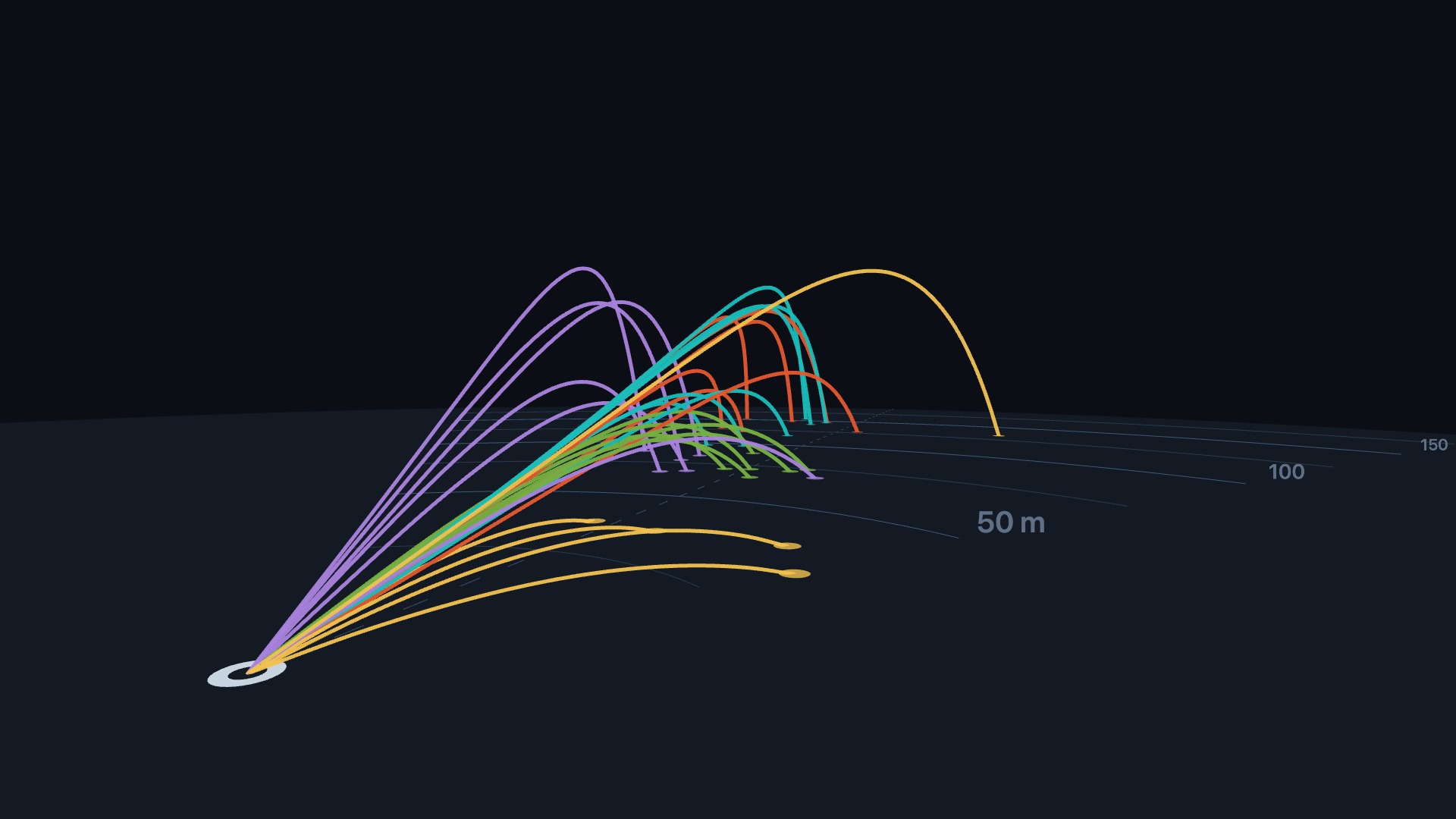

palette

Ordered categorical colors, any CSS color. The default is CVD-validated for dark surfaces. Keys beyond the palette length render gray instead of cycling.

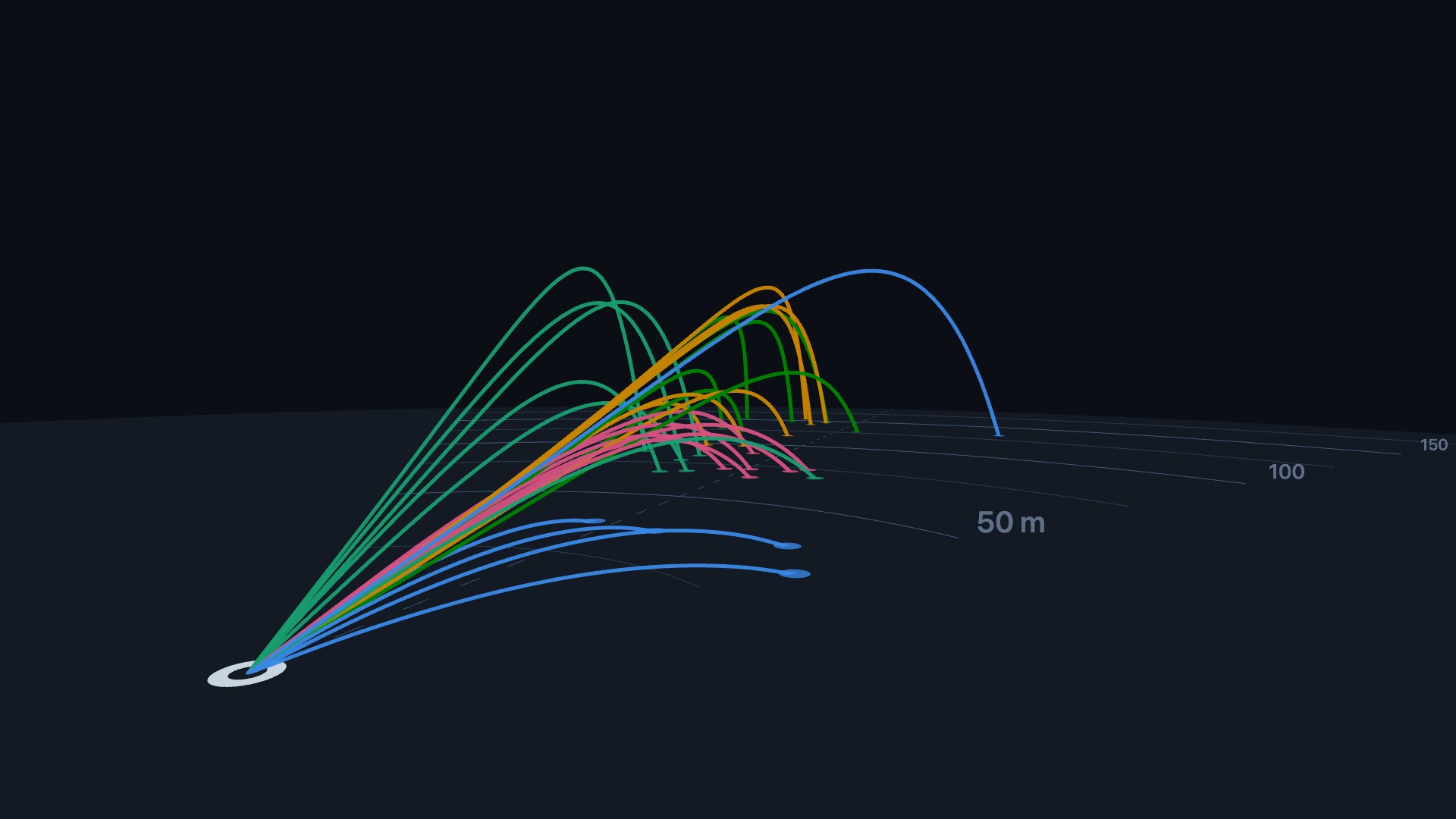

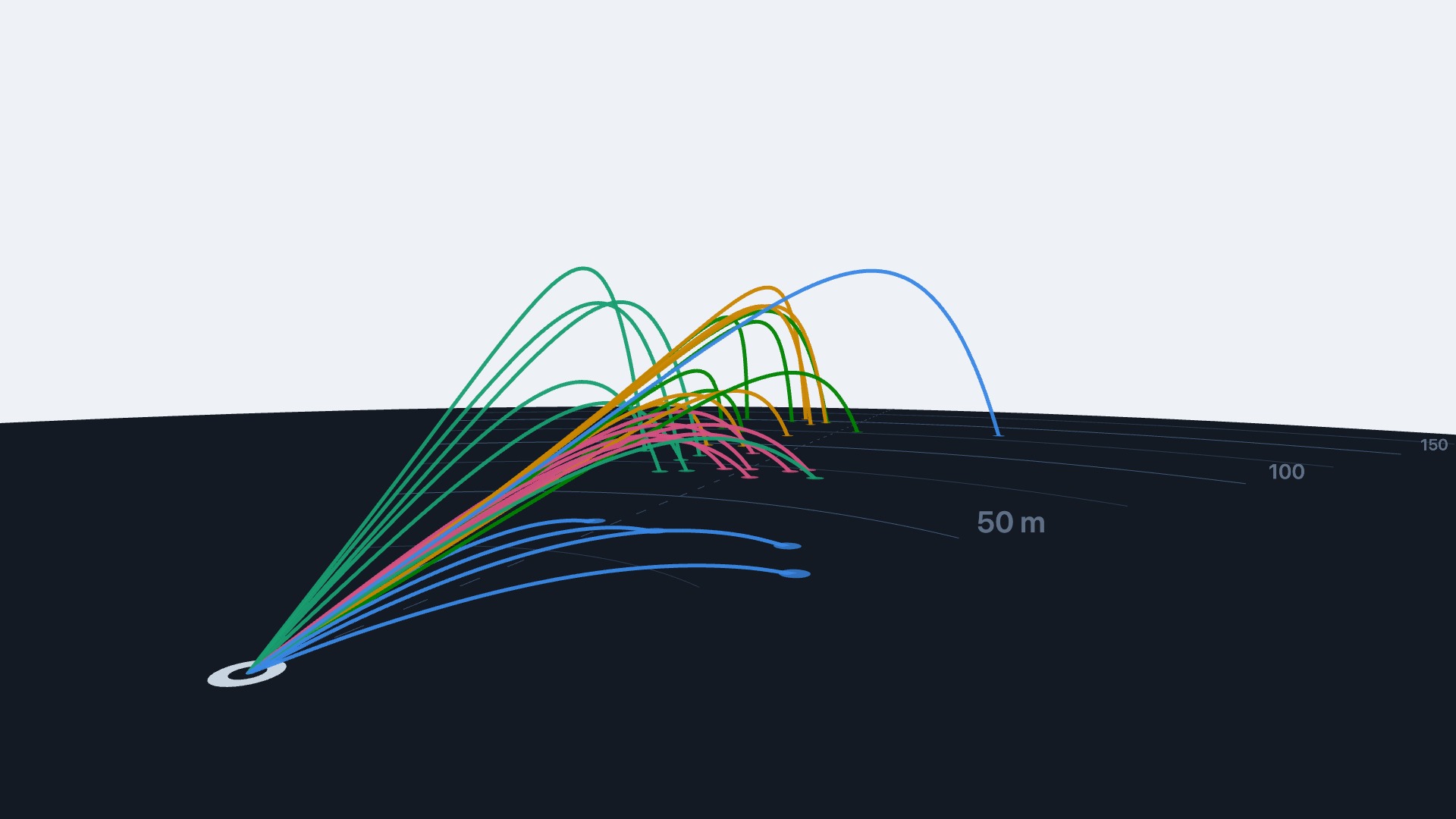

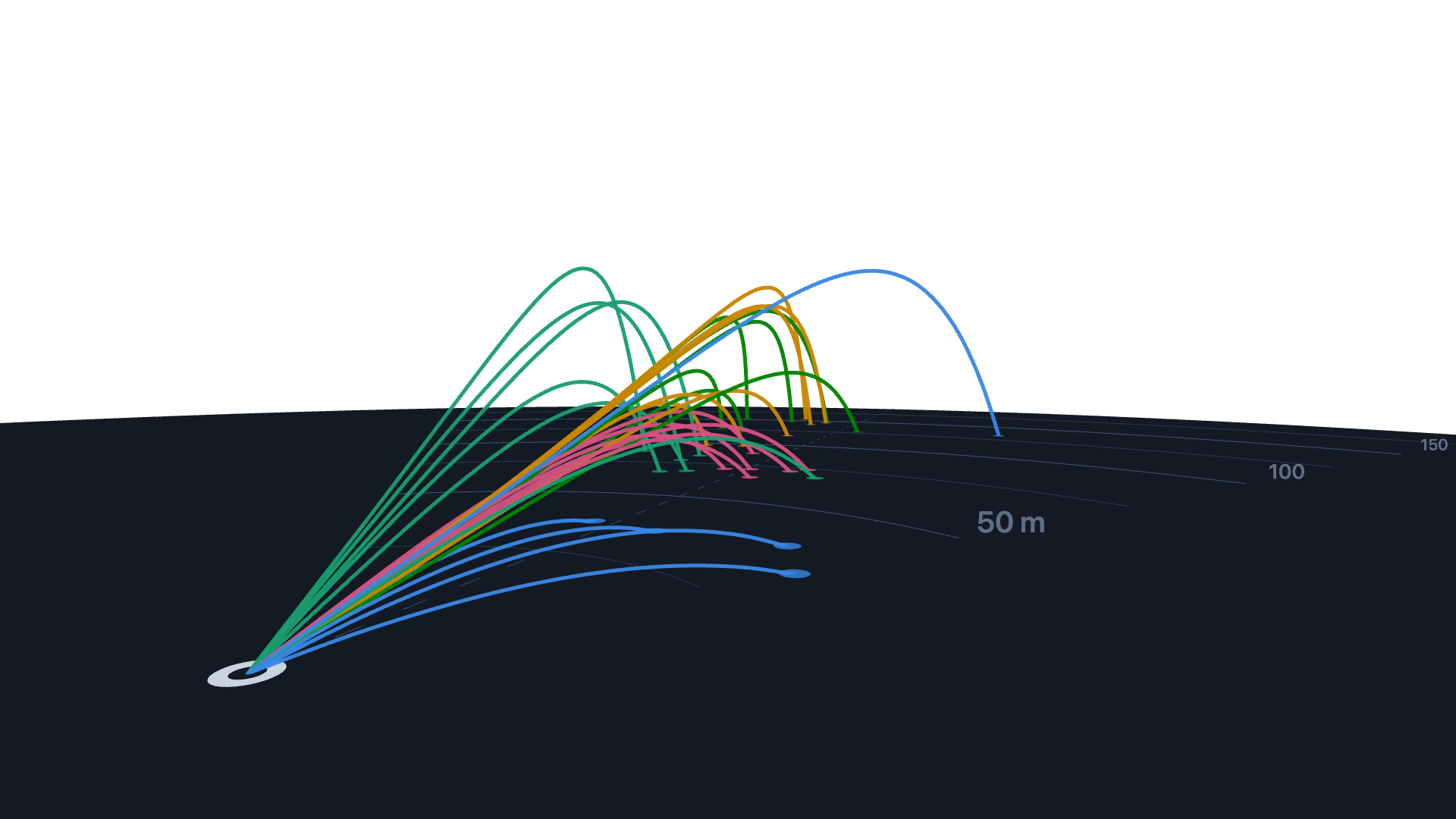

background

Scene background as a CSS color, or null for a transparent canvas over whatever the page draws behind it. Fog matches the background color.

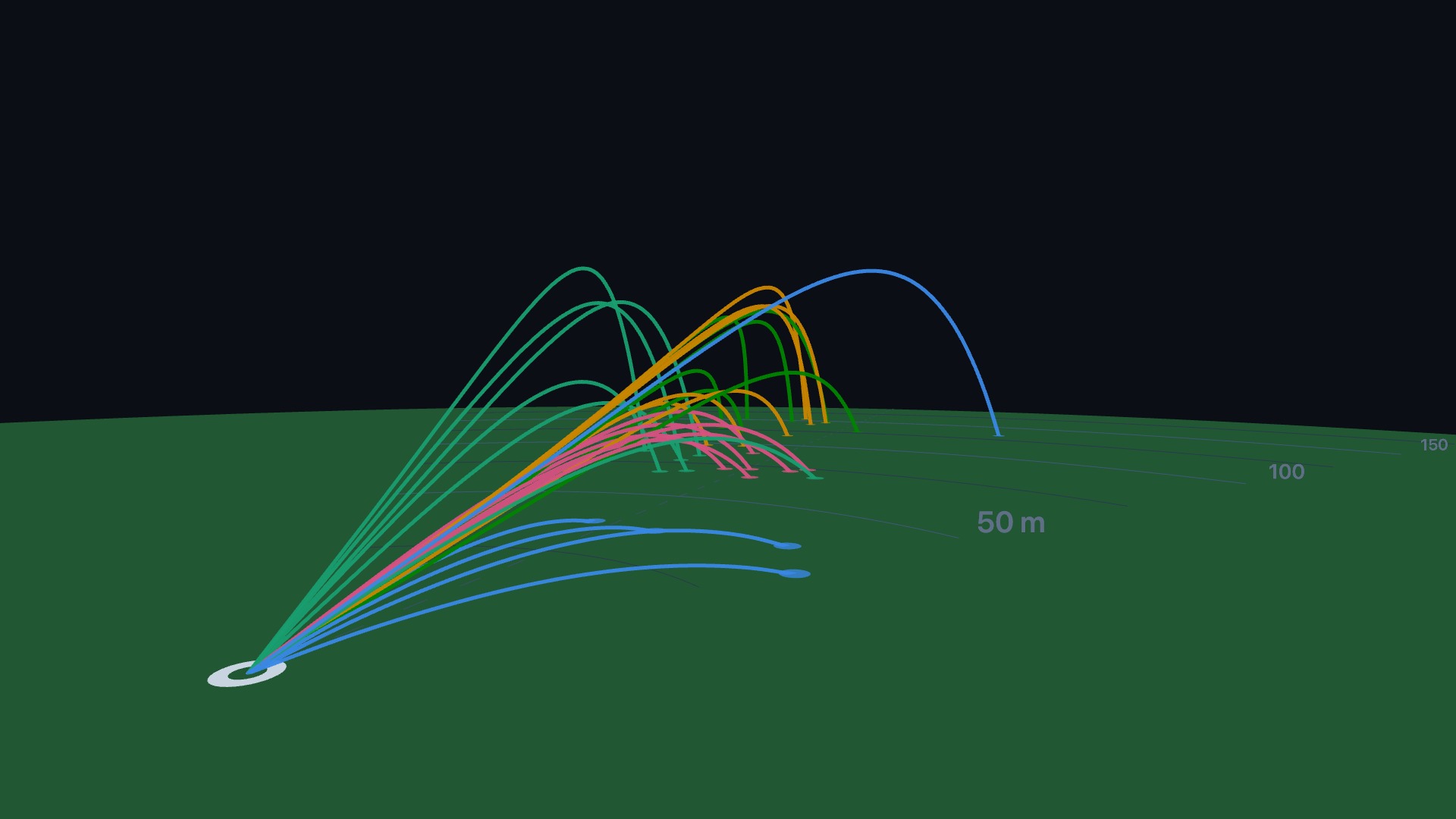

groundColor

Floor disc color, any CSS color. The default blends into the dark theme. A turf green reads as grass.

units

Display units for the ground distance arcs and tooltips. Data stays meters either way.

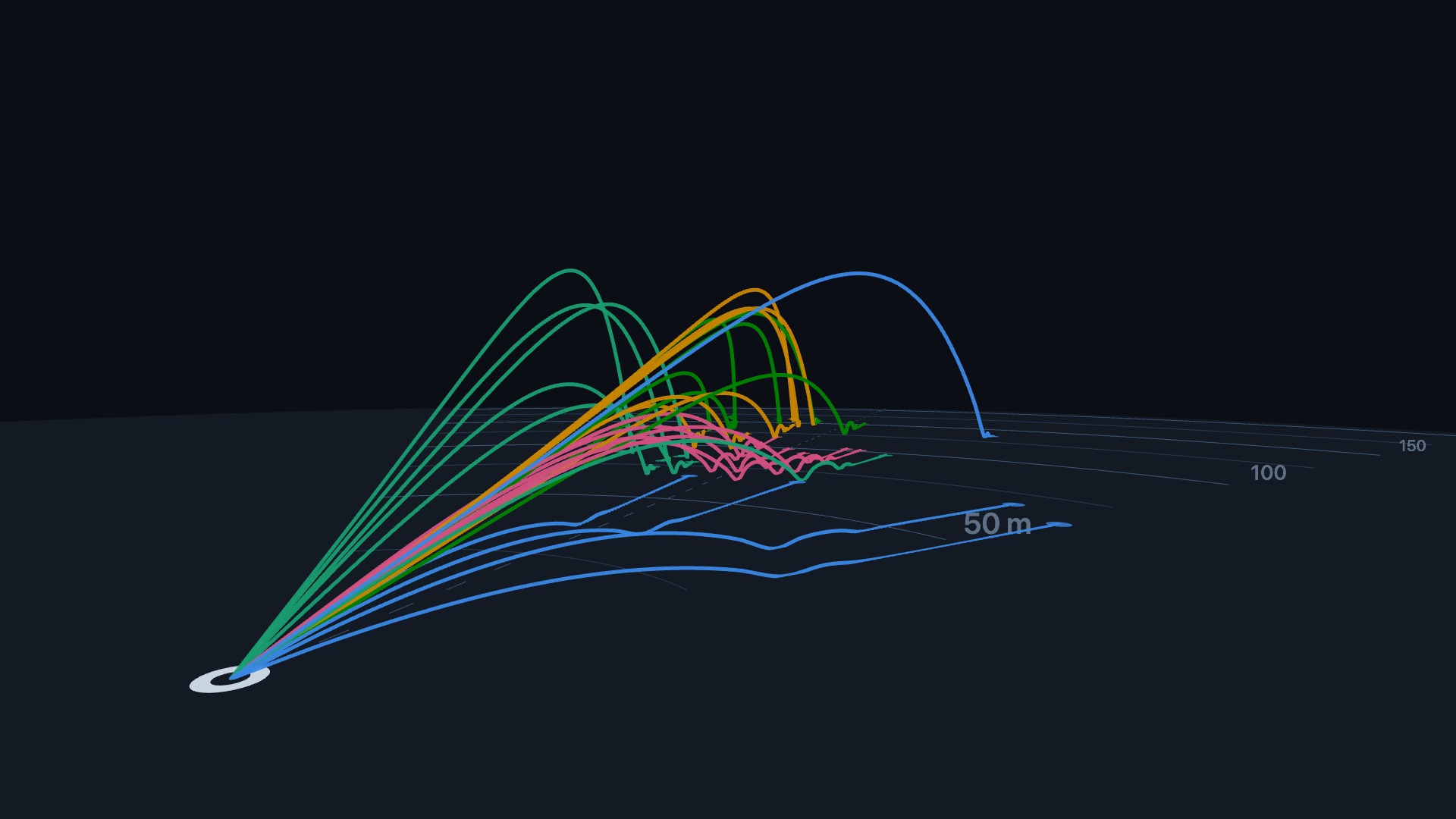

rollout

Off clips each trajectory at the first touchdown, so what you see is carry. On renders the measured bounce and rollout points past it.

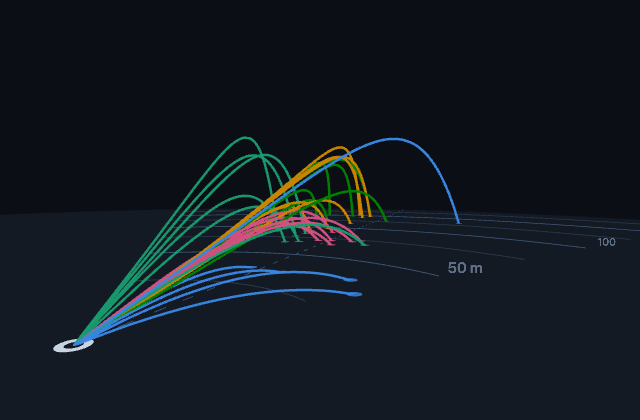

autoRotate

Slow idle orbit around the scene. Good for kiosk or hero placements.

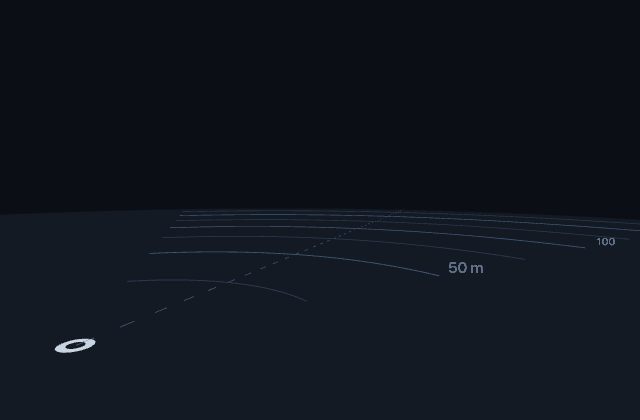

play({ order })

volley launches every shot at once; fast balls visibly outpace slow ones. sequence staggers launches. Both GIFs are time-compressed.

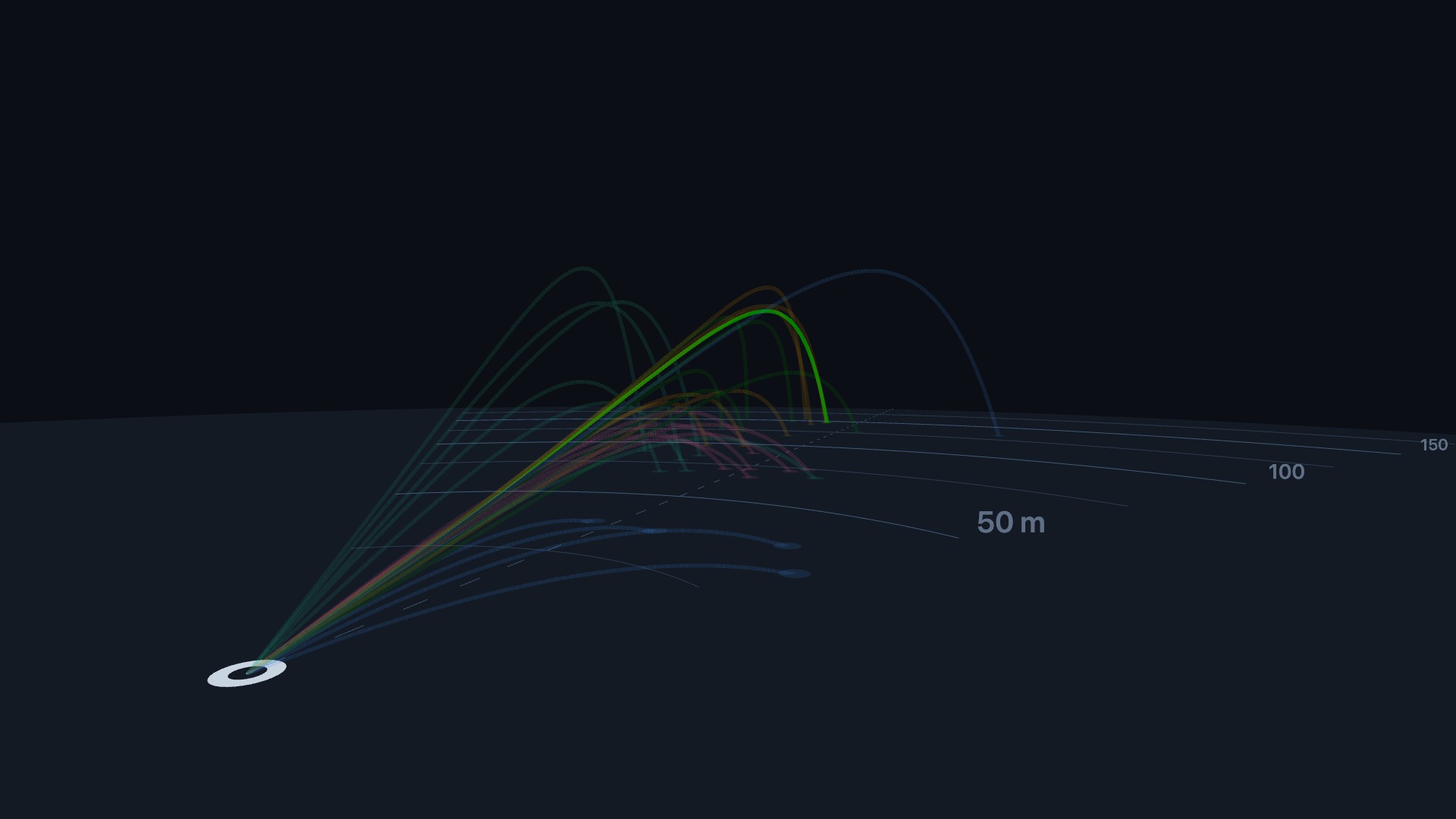

select(id)

Selecting a shot dims the rest. Click a tracer or call select(id); select(null) clears.

Not pictured

• tooltip Built-in hover card with club, carry, apex, ball speed. A DOM overlay, so it only shows live. Try it in the demo.
• speed Playback rate multiplier. play({ speed }) or setSpeed().
• loop Restart the replay when it ends. play({ loop: true }).
• stagger Seconds between launches in sequence order. Default 1.2.
